Overview of UML

Read this post in: de_DEen_USes_ESfr_FRid_IDjapl_PLpt_PTru_RUvizh_CNzh_TW
Overview of UML

Overview of UML

UML (Unified Modeling Language) is a standardized modeling language used to describe, design, and document the artifacts of object-oriented systems. It is widely accepted for its ability to visually represent complex systems through various diagram types. UML’s major components include:

Overview of the 14 UML Diagram Types

Structural Diagrams

Structural diagrams capture the static structure of a system. Key types include:

  • Class Diagram: Shows classes, their attributes, methods, and relationships. For example, in an e-commerce system, a class diagram might include classes like Customer, Order, and Product, with relationships such as “a Customer places an Order” and “an Order contains Products.”

  • Object Diagram: Represents instances of classes at a particular moment. For instance, an object diagram might show specific instances of Customer and Order at a given time.

  • Component Diagram: Depicts how components are wired together. In a software application, a component diagram might show how the UserInterface component interacts with the Database component.

  • Deployment Diagram: Illustrates the physical deployment of artifacts on nodes. For example, it might show how software components are deployed on different servers in a network.

  • Package Diagram: Organizes elements into packages for managing complexity. In a large system, a package diagram might group related classes into packages like UserManagement and OrderProcessing.

Behavioral Diagrams

Behavioral diagrams capture the interactions and dynamic behavior of a system. Key types include:

  • Use Case Diagram: Identifies system functionalities from an end-user’s perspective. For example, a use case diagram for an online banking system might include use cases like “Login,” “View Account Balance,” and “Transfer Funds.”

  • Sequence Diagram: Details object interactions in a time sequence. For instance, a sequence diagram might show the sequence of interactions when a user places an order on an e-commerce site.

  • Communication Diagram: Focuses on object interactions, emphasizing relationships. In a communication diagram, you might see how different objects communicate to process a customer order.

  • State Machine Diagram: Models object states and transitions. For example, a state machine diagram for an order might show states like “Pending,” “Processing,” and “Completed,” with transitions between these states.

  • Activity Diagram: Describes workflows and business processes. An activity diagram for a customer support system might show the steps involved in handling a customer inquiry.

Object-Oriented System Development: Key Concepts

Object-oriented system development (OOSD) is a methodology that structures a system as a collection of interacting objects. Key principles include:

  • Encapsulation: Bundling data (attributes) and methods (operations) together, controlling access through well-defined interfaces. For example, a BankAccount class might encapsulate attributes like balance and methods like deposit and withdraw.

  • Inheritance: Enabling new classes to inherit attributes and behaviors from existing classes, promoting code reuse. For instance, a SavingsAccount class might inherit from a BankAccount class, adding specific behaviors like calculating interest.

  • Polymorphism: Allowing entities to take on multiple forms, enabling objects to be treated as instances of their parent class. For example, a Shape class might have subclasses like Circle and Rectangle, each implementing a draw method differently.

  • Abstraction: Simplifying complex systems by modeling classes based on relevant information and hiding implementation details. For instance, a Vehicle class might abstract common properties like speed and fuelType, hiding specific details of different vehicle types.

A Typical OOSD Lifecycle Using UML

An object-oriented system is often developed through these phases:

A. Requirements Analysis and Use Case Modeling

  • Identify the users or actors of the system.
  • Capture functional requirements using Use Case Diagrams.
  • Define business processes with Activity Diagrams.

B. System Design

  • Define the structure using Class Diagrams that list classes, their relationships (associations, aggregations, compositions, dependencies), and attributes or operations.
  • Use Sequence and Communication Diagrams to model the flow of interactions in key business scenarios.
  • Deploy components and software artifacts using Component and Deployment Diagrams.

C. Implementation

  • Convert design models into code following object-oriented programming principles.
  • Use design patterns (such as Factory, Singleton, Observer) to address common challenges.
  • Continuously update UML diagrams to reflect system changes and support collaboration.

D. Testing and Maintenance

  • Design test cases that reflect the interactions modeled in Sequence Diagrams.
  • Use state machine and activity diagrams to simulate various object states and dynamic behaviors.
  • Maintain documentation using UML diagrams to support future system evolution.

Recommended Best Practices

  • Maintain consistency between models and source code. Employ design tools that support round-trip engineering.
  • Use simpler diagrams focused on audiences. High-level models help non-technical stakeholders, while detailed diagrams serve developers.
  • Embrace iterative enhancements. UML diagrams, like any documentation, should be updated throughout the development lifecycle.
  • Leverage modeling standards and notations recognized industry-wide to facilitate team collaboration and maintenance.

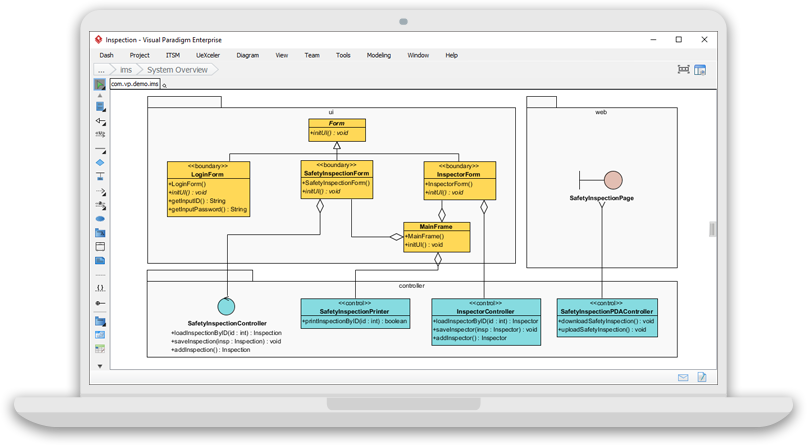

Why Visual Paradigm is the Best Tool for Development Teams

Visual Paradigm stands out as one of the best tools for UML and object-oriented system development due to its rich feature set and team-friendly functionality:

Overview of UML

Comprehensive UML Support

  • Visual Paradigm offers complete support for standard UML diagrams, plus BPMN, SysML, and ArchiMate for enterprise architecture.
  • It provides intuitive options for drag-and-drop diagram creation, transformation, and customization.

Code Engineering and Round-Trip Support

  • The tool enables code generation from UML models and supports reverse engineering of code to keep models up-to-date with development.
  • This round-trip engineering minimizes discrepancies between design, documentation, and implementation.

Collaboration and Teamwork

  • Visual Paradigm provides collaboration features such as shared repositories, version control integration, and online diagram sharing.
  • Real-time collaboration and cloud-based access make it an ideal solution for distributed teams.

Robust Project Management Integration

  • With integrated project management tools, Visual Paradigm helps teams plan, document, and track progress.
  • The tool supports requirements management, resource allocation, and traceability from requirements through design to implementation.

Ease of Learning and Use

  • Visual Paradigm is known for its user-friendly interface and extensive documentation, tutorials, and community support.
  • Whether you are a beginner or an expert, the tool scales to your needs, simplifying complex modeling tasks.

Adaptability Across Domains

  • Beyond object-oriented systems, Visual Paradigm supports enterprise, service-oriented, and system engineering needs, making it a versatile asset for diverse projects.

Conclusion

A comprehensive understanding of UML and object-oriented system development provides the backbone for creating scalable and maintainable systems. By employing clear visual models, teams can bridge the gap between conceptual designs and practical implementations. With its wide array of features, real-time collaboration capabilities, and robust support for modeling standards, Visual Paradigm is the recommended tool for any development team striving to enhance communication, consistency, and productivity throughout the software development lifecycle.

Adopting Visual Paradigm means embracing a solution that not only meets the demands of modern object-oriented development but also fosters an environment of clarity, efficiency, and innovation—making it the best tool for development teams tasked with building complex systems.
