Case Study: Modeling a Smart Thermostat System with UML State Machine Diagrams

In the era of smart homes and IoT-driven comfort, smart thermostats stand as one of the most successful examples of embedded systems that blend user convenience, energy efficiency, and autonomous decision-making. Devices like Nest, Ecobee, or Honeywell Home not only respond to direct commands but also learn from patterns, adapt to schedules, detect environmental changes, and gracefully recover from faults such as power interruptions or sensor failures.

At the heart of such a device lies its control logic — a reactive, event-driven behavior that must reliably handle diverse scenarios: a user manually overriding a schedule, a daily program kicking in at 7 AM, the room temperature drifting outside the comfort zone, or the system entering a safe shutdown after detecting a hardware issue.

While flowcharts or pseudocode can sketch parts of this logic, they quickly become tangled when dealing with overlapping conditions, priority of events, and recovery paths. This is where UML State Machine Diagrams (also called Statecharts) prove invaluable. They offer a precise, visual, and executable specification of the system’s lifecycle — defining exactly which states are valid, what events trigger changes, under what conditions transitions occur, and what actions are performed on entry, exit, or during a state.

This case study examines a realistic smart thermostat workflow modeled as a UML State Machine Diagram using PlantUML notation. The example captures core operational modes (Idle, user configuration, automatic scheduling, manual override), fault tolerance (Error state), and power management (Disabled state), while illustrating fundamental UML concepts such as:

• Initial and final pseudostates
• Event-triggered transitions
• Hierarchical potential (implied for future substates like Heating/Cooling)
• Clear separation of user-driven vs. system-driven behavior
• Explicit error and termination handling

By dissecting this diagram, we demonstrate how state machines bring clarity to embedded system design, reduce implementation bugs, enable formal verification, and serve as living documentation for developers, testers, and stakeholders.

Furthermore, we explore how modern AI-assisted tools — particularly Visual Paradigm’s AI State Machine Diagram Chatbot/Generator — dramatically accelerate the creation, refinement, and extension of such models. What once took hours of manual drawing can now begin with a single natural-language description and evolve through iterative conversation, producing professional, standards-compliant diagrams in minutes.

Whether you’re designing firmware for the next generation of connected home devices, teaching reactive system principles, or simply seeking a robust way to specify dynamic behavior, this case study provides both a practical reference model and a blueprint for leveraging UML state machines effectively in real-world projects.

Let’s dive into the thermostat’s lifecycle — from powered-on idle to autonomous comfort control and graceful failure recovery.

This comprehensive case study explores how UML State Machine Diagrams (also known as Statecharts) can precisely model the dynamic behavior of a smart thermostat — a common embedded IoT device in smart homes. The provided PlantUML code represents a realistic lifecycle that balances user control, automated operation, error handling, and power management.

We will cover:

• Real-world context & motivation

• Key UML State Machine concepts demonstrated

• Detailed breakdown of the diagram

• Step-by-step guidelines for creating such diagrams

• Benefits & common extensions

• How Visual Paradigm’s AI State Machine Diagram Chatbot / Generator can accelerate and improve the entire modeling process



1. Business & Technical Context

Modern smart thermostats (e.g., Nest, Ecobee, Honeywell Home) must:

• Respond to user inputs (set temperature, switch modes, power off)

• Operate autonomously based on schedules, learned patterns, or current room temperature

• Handle faults gracefully (sensor failure, network loss, power outage)

• Minimize energy consumption

Trying to express this behavior with only code comments or flowcharts quickly leads to unmaintainable logic. A UML State Machine Diagram provides:

• A visual, executable specification

• Clear definition of valid states & transitions

• Prevention of invalid sequences (e.g., can’t heat when powered off)

• Basis for code generation, simulation, and formal verification

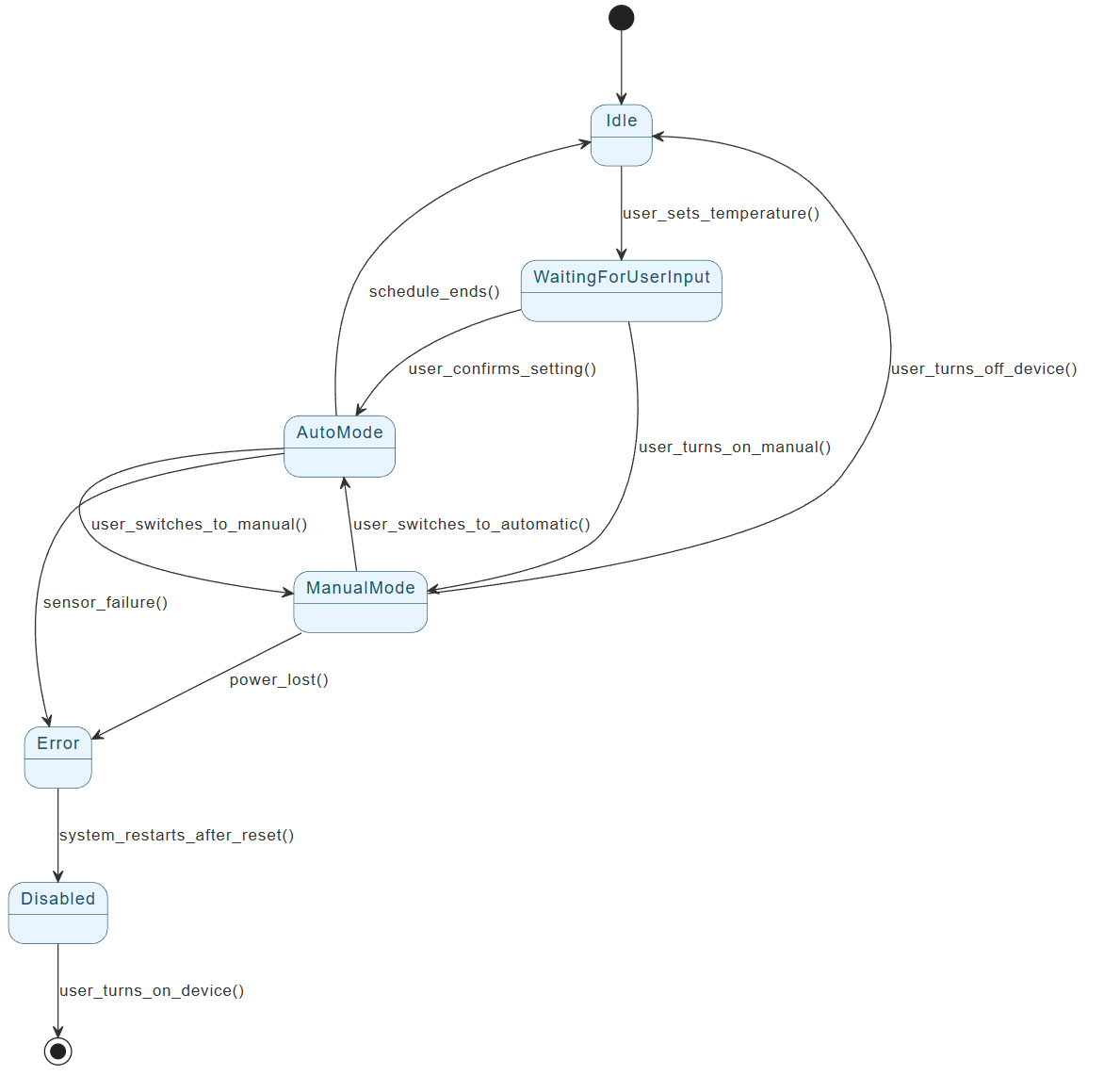

The diagram below captures a typical smart thermostat lifecycle in a clean, hierarchical, and event-driven way.

Provided PlantUML Diagram (Smart Thermostat)

@startuml

skinparam {
  ' Overall style
  ' Colors
  ArrowColor #333333
  ArrowFontColor #333333
  BackgroundColor #FFFFFF
  BorderColor #333333

  ' State styling
  State {
    BorderColor #005073
    BackgroundColor #E6F5FF
    FontColor #005073
  }
}

[*] --> Idle

Idle --> WaitingForUserInput : user_sets_temperature()
WaitingForUserInput --> AutoMode : user_confirms_setting()
WaitingForUserInput --> ManualMode : user_turns_on_manual()

AutoMode --> Idle : schedule_ends()
AutoMode --> ManualMode : user_switches_to_manual()
ManualMode --> AutoMode : user_switches_to_automatic()
ManualMode --> Idle : user_turns_off_device()

AutoMode --> Error : sensor_failure()
ManualMode --> Error : power_lost()

Error --> Disabled : system_restarts_after_reset()
Disabled --> [*] : user_turns_on_device()

@enduml

2. Key UML State Machine Concepts Demonstrated

3. Detailed Breakdown of the Smart Thermostat States

4. Step-by-Step Guidelines for Creating a State Machine Diagram

1. Identify the Object / System
   → Focus on one entity (here: ThermostatController).

2. List Main States
   → Brainstorm lifecycle phases (Idle → Active modes → Error/Off).

3. Define Transitions & Triggers
   → Ask: “What event causes a change from this state?”
   → Include user events, timers, sensor readings.

4. Add Guards (if needed)
   → Conditions like [temperature < 18°C].

5. Specify Actions
   → Entry/exit/do activities (e.g., turn on fan, log event).

6. Use Hierarchy (Composite States)
   → Group Heating/Cooling inside AutoMode.

7. Handle Errors & Termination
   → Always include error recovery and final states.

8. Validate
   → Ensure no dead states, unreachable states, or invalid transitions.

9. Iterate & Refine
   → Add orthogonal regions (e.g., separate “Display” and “Control” behavior).

5. Real-World Extensions & Best Practices

• Add Orthogonal Regions
  → One region for Heating/Cooling, another for Wi-Fi Connectivity (Connected / Disconnected).

• History Pseudostate
  → Return to last substate (e.g., resume Heating after power restore).

• Timeouts
  → Idle --> Disabled : after(30min) (auto power-off).

• Concurrent States
  → Display updates independently of control logic.

• Code Generation
  → Many tools (including Visual Paradigm) can generate state pattern code from the diagram.

6. How Visual Paradigm’s AI State Machine Diagram Generator / Chatbot Automates & Improves This Process

Visual Paradigm (VP) offers one of the most mature AI-powered UML modeling suites in 2026, with dedicated support for State Machine Diagrams via both:

• AI Diagram Generator (Desktop Professional Edition)

• AI Chatbot (Online at chat.visual-paradigm.com)

Key Advantages of Using VP AI for This Case Study

1. Instant Generation from Natural Language
   Prompt example:

   “Create a UML State Machine Diagram for a smart thermostat with states: Idle, WaitingForUserInput, AutoMode, ManualMode, Error, Disabled. Transitions: user sets temperature from Idle to WaitingForUserInput, confirm to AutoMode or ManualMode, faults to Error, restart to Disabled, power on from Disabled.”

   → AI generates a clean, editable diagram in seconds — states, transitions, events, and layout.

2. Iterative Refinement via Chat

   • “Add a composite state for AutoMode with substates Heating and Cooling”

   • “Include guards: from Heating to Cooling when [currentTemp > setTemp + 2]”

   • “Add entry action in Heating: turnOnHeater()”
     → Diagram updates live in the chat interface.

3. Standards-Compliant & Professional Output

   • Uses correct UML 2.5 notation

   • Auto-applies professional styling (rounded rectangles, proper arrows)

   • Supports hierarchical states, history, entry/exit points

4. Dual View & PlantUML Source

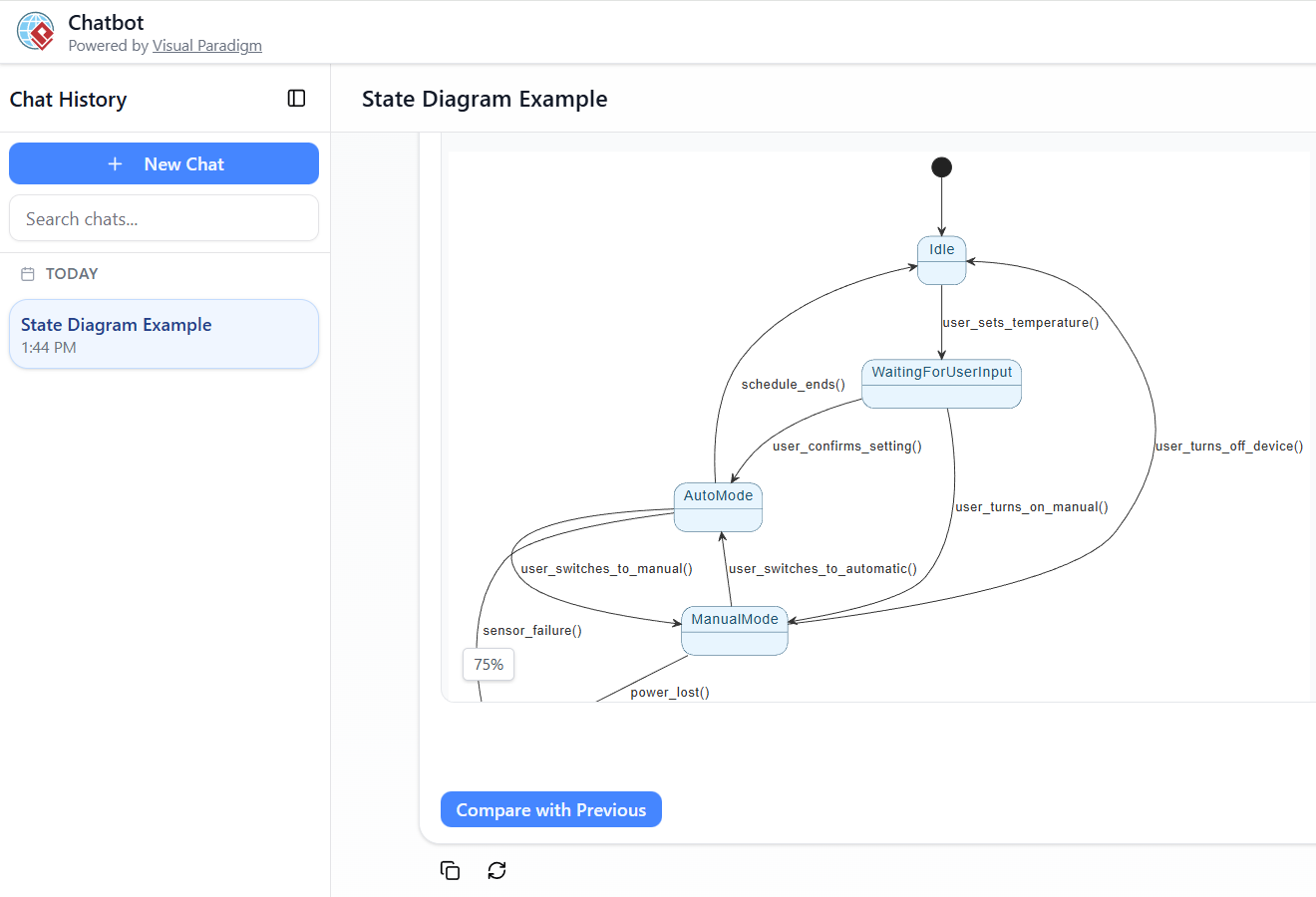

   • Right panel: rendered diagram + PlantUML tab

   • Edit PlantUML directly if desired, or export to VP project

5. Integration & Export

   • Import generated diagram into VP Desktop for simulation, code generation, traceability

   • Export as PNG/SVG/PDF or embed in documentation

6. Learning & Validation Aid

   • Ask: “Explain why we need a final state here” or “Suggest improvements for fault tolerance”

   • Great for students, architects, or teams reviewing IoT device behavior

Supported Diagram Types (2026 Status)

VP AI supports 13+ UML & related types, including:

• State Machine Diagram

• Class, Use Case, Sequence, Activity, Component, Deployment

• Requirement, Object, ERD, PERT, Decision Table, C4, ArchiMate, SysML

For smart home / IoT systems, you can quickly generate complementary diagrams (e.g., Component Diagram for hardware modules, Sequence Diagram for user ↔ cloud interaction).

Bottom Line

The Visual Paradigm AI State Machine Diagram Chatbot / Generator transforms a multi-hour manual modeling task into a minutes-long conversation. It eliminates syntax errors, enforces UML standards, and lets you focus on correct behavior rather than drawing arrows. For real-world projects like smart thermostats, this means faster prototyping, better documentation, and fewer bugs in production firmware.

Would you like a refined prompt to generate an enhanced version of this thermostat diagram (with composites, actions, and guards) in Visual Paradigm AI? Or a complementary diagram type?
